- Name: LED洗墙灯

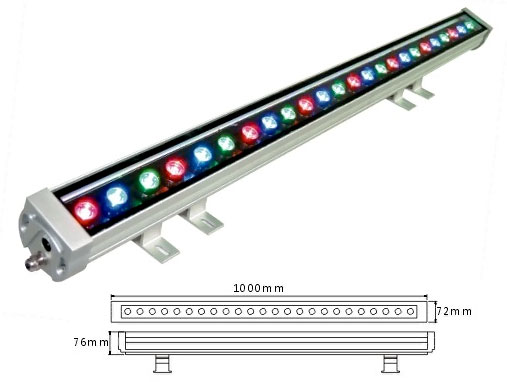

- Model: XQD-S24W
Introduction
| Specification | |
|---|---|
| Power | 24W |
| LED Qty | 24PCS |
| LED Chips | 1W (Taiwan Epistar) |
| Lumen | 2100LM |
| Input Voltage | AC220V |
| Waterproof Rate | IP65 |
| LED Driver | Built-in Waterproof Driver |
| Lens | 15°45° 60°120°Custom |
| Color Temp | 3000-6500K, Red, Green, Blue, RGB |
| Control | Always light, Built-in, controller or DMX512 |
| Working Temp | -40°C- +55°C |
| Lifespan | 50000H |
| Application Area | Outdoor |
| Housing | Glass, Aluminum profiles |
| Dimension | - |
| Warranty | 2 Years |
Application Area:
It can be widely used in skyscraper, bridge, tower, hotels, historical spot, wharf, scenic, park, sculpture, entertainment sites spot lighting and lighting projects.
Application Examples:
Single color lighting effects, and colorful lighting effects, if using the controller lamp is mainly using the DMX512 control mode.
Bridge Rails application, using colorful DMX512 control wall washer.
The picture above is general lighting applications, wall washer lights are mainly used in the linear light, projection lighting effects make it more layers.
